Inversores de 220 VMUST

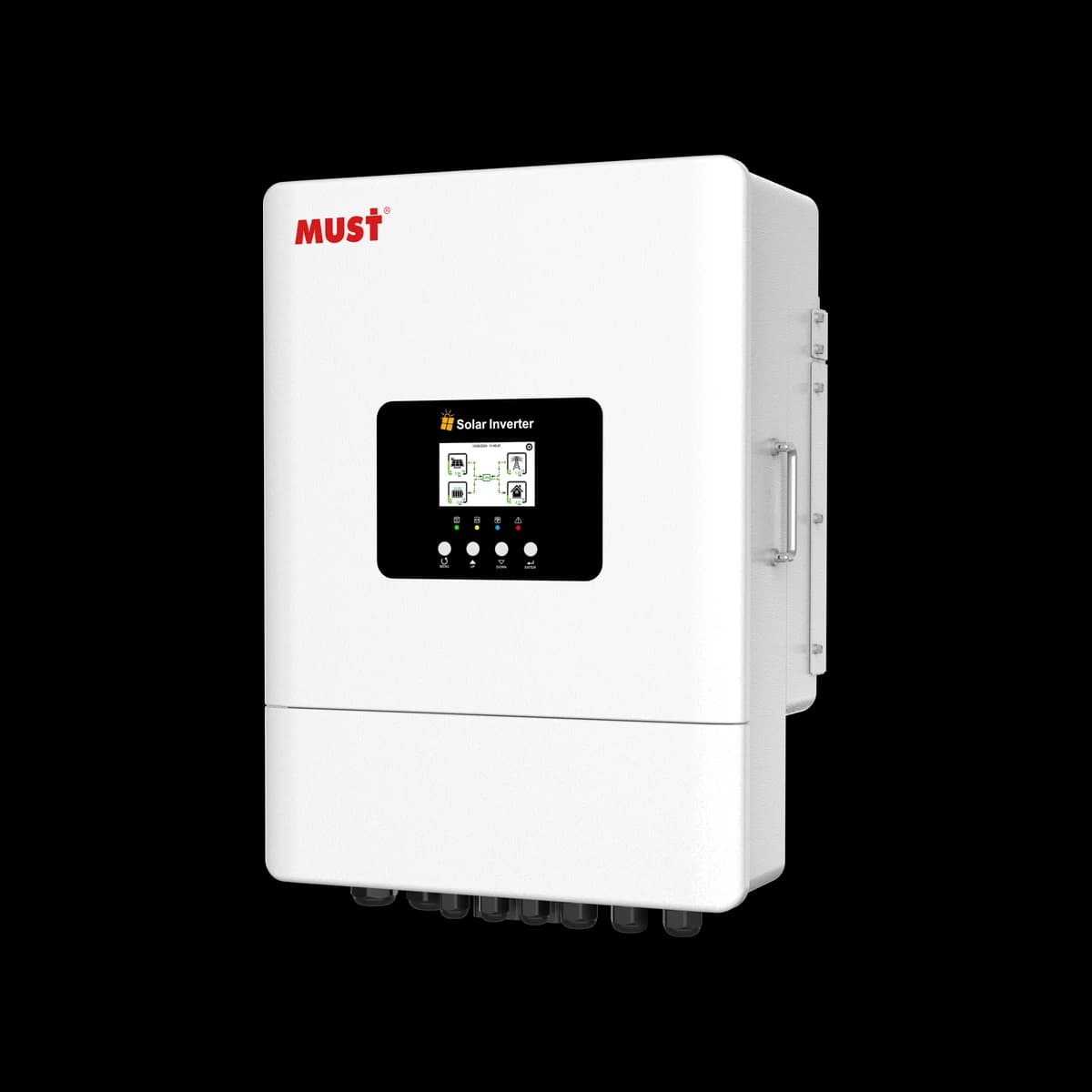

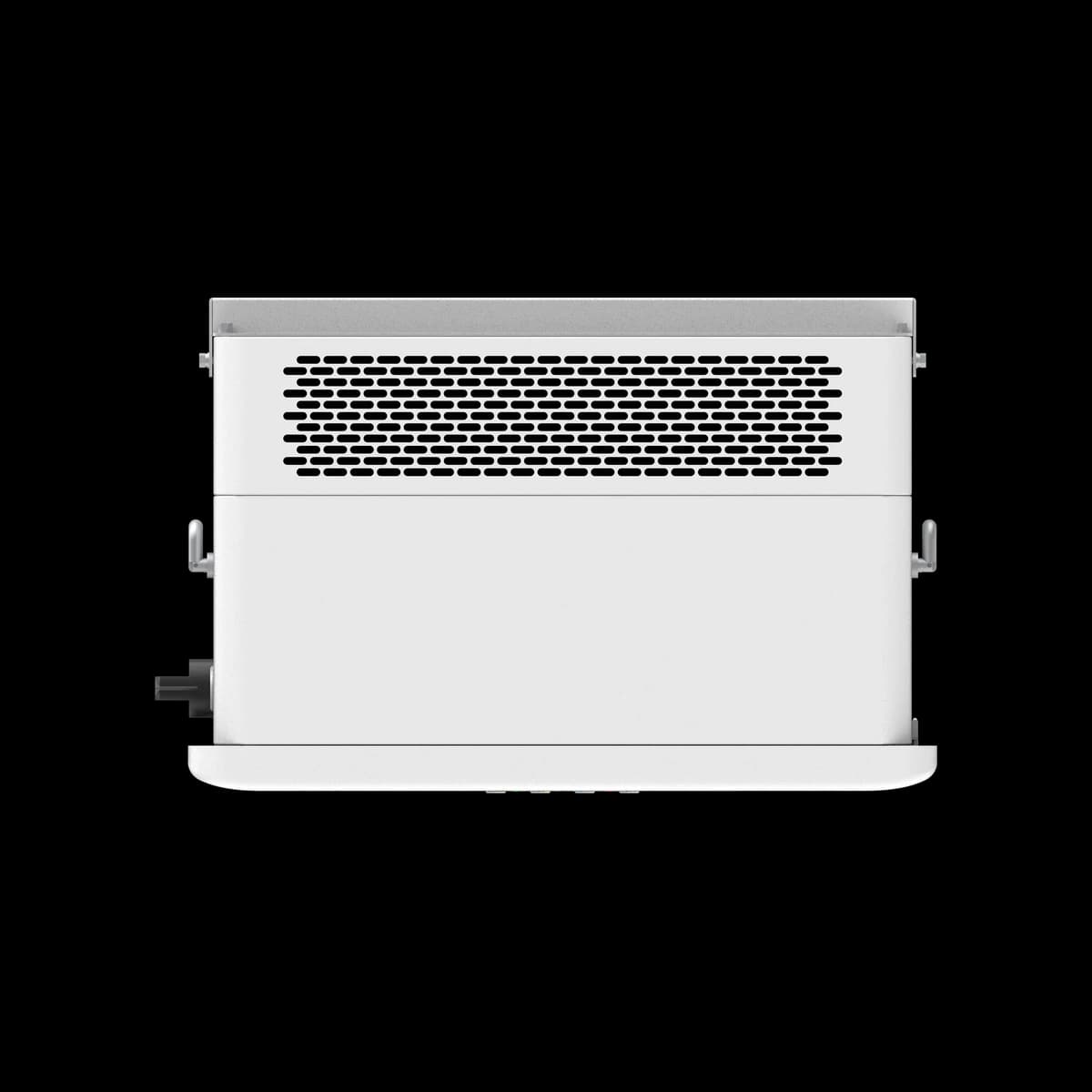

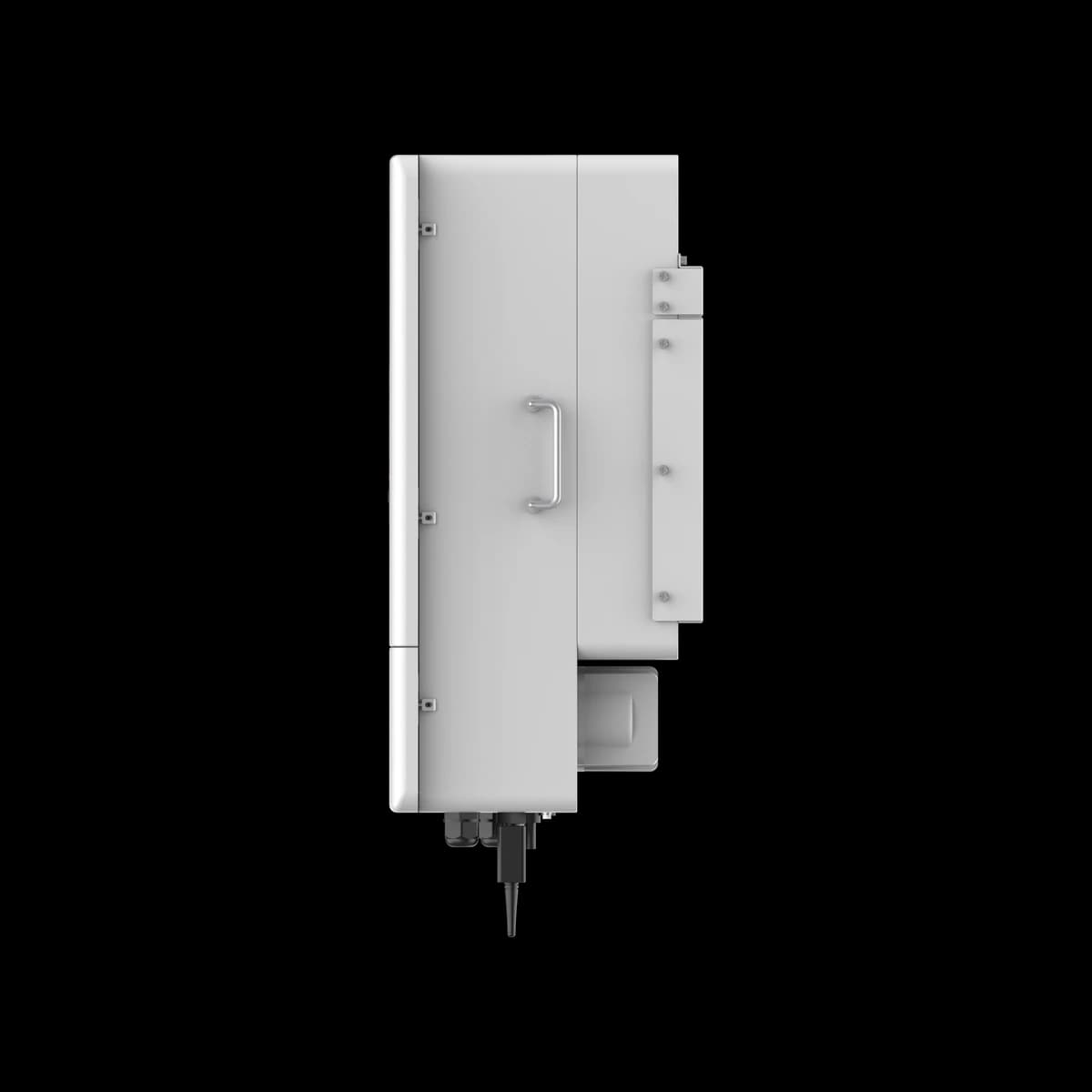

Série PH1100 EU
Inversor solar MUST Série PH1100 EU da linha 2026, com potência de 5–10 kW e configuração monofásica. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência5–10 kW
FaseMonofásico
Bateria48 V
ProteçãoIP66
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||
|---|---|---|---|---|
| MODELO | PH11-5KL1-EU | PH11-6KL1-EU | PH11-8KL1-EU | PH11-10KL1-EU |
| Rated power | 5000W | 6000W | 8000W | 10000W |
| DADOS DE ENTRADA DA BATERIA | ||||
| Battery type | Lead-acid battery / Lithium battery | |||
| Battery voltage | 48V | |||
| Battery voltage range | 40~60V | |||
| Charging curve | 4-stage adaptive with maintenance/Equalization | |||
| Maximum charging/discharging power | 5000W | 6000W | 8000W | 10000W |
| Maximum charging/discharging current 120A 150A 190A 220A PV STRING INPUT DATA | ||||
| Max. DC Input Power | 10000W | 12000W | 16000W | 20000W |
| Maximum DC voltage | 600V | |||
| Full Load DC Voltage Range | 250-540V | 300-540V | 285-540V | 357-540V |
| Minimum voltage for grid connection | 150V | |||
| Maximum input current | 20A/20A | 36A/20A | ||
| No.of MPP Trackers | 2 | |||
| Input terminal type | H4/MC4 | |||
| AC INPUT/OUTPUT DATA | ||||
| Rated AC Input/Output Active Power | 5000W | 6000W | 8000W | 10000W |
| Max. AC Input/Output Apparent Power | 5500VA | 6600VA | 8800VA | 11000VA |
| Max. AC Input Power (grid to load) | 10000W | 12000W | 16000W | 20000W |
| Rated Input/Output Voltage/Range | 220/230/240VAC | |||
| Rated Input/Output Grid Frequency/Range | 60Hz±5Hz/ 50Hz±5Hz | |||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||
| Grid Type | Single phase | |||
| DC Current Injection | 0.5% | |||
| EFFICIENCY | ||||
| Max. Efficiency | 97.5% | |||
| Euro Efficiency | 96.5% | |||
| MPPT Efficiency | 99.5% | |||
| PROTECTION | ||||
| Integrated | Islanding protection, Output overcurrent protection, Output overvoltage protection, DC switch rating for each MPPT, Grid monitoring, Output over current protection, Gird overvoltage protection-varistor, Integrated all-pole sensitive leakage current, ISO monitoring, over temperature protection. | |||
| Surge Protection | AC Type III | |||
| Overvoltage Category | AC Type III | |||
| OUTROS PARÂMETROS | ||||
|---|---|---|---|---|
| MODELO | PH11-5KL1-EU | PH11-6KL1-EU | PH11-8KL1-EU | PH11-10KL1-EU |
| GENERAL DATA | ||||
| Operating Temperature Range (°C) | -25°C~+60°C, >45°C Derating | |||
| Cooling | Intelligent Fan | |||
| Noise (dB) | ≤55dB | |||
| Altitude | 3000m, >3000mDerating | |||
| Topology | Battery-side transformer isolation, PV-side non-transformer isolation | |||
| Communication | USB/ WiFi/ Enternet(optional) | |||
| Display | 4.3-inch touch screen | |||
| Protection Degree | IP66 | |||
| ESPECIFICAÇÕES MECÂNICAS | ||||
| Machine Dimension (W*H*D)(mm) | 446*687*285 (excluding connectors and racks) | |||
| Package Dimension (W*H*D)(mm) | 567*404*816 | |||
| N.W(kg) | 38 (Excluding Connectors and Brackets) | |||
| G.W(kg) | 42 | |||
| Warranty | 5 Year the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||
| CERTIFICAÇÕES E NORMAS | ||||
| NBT32004-2013 | ||||
O preço depende do modelo e da configuração.
