PV3900

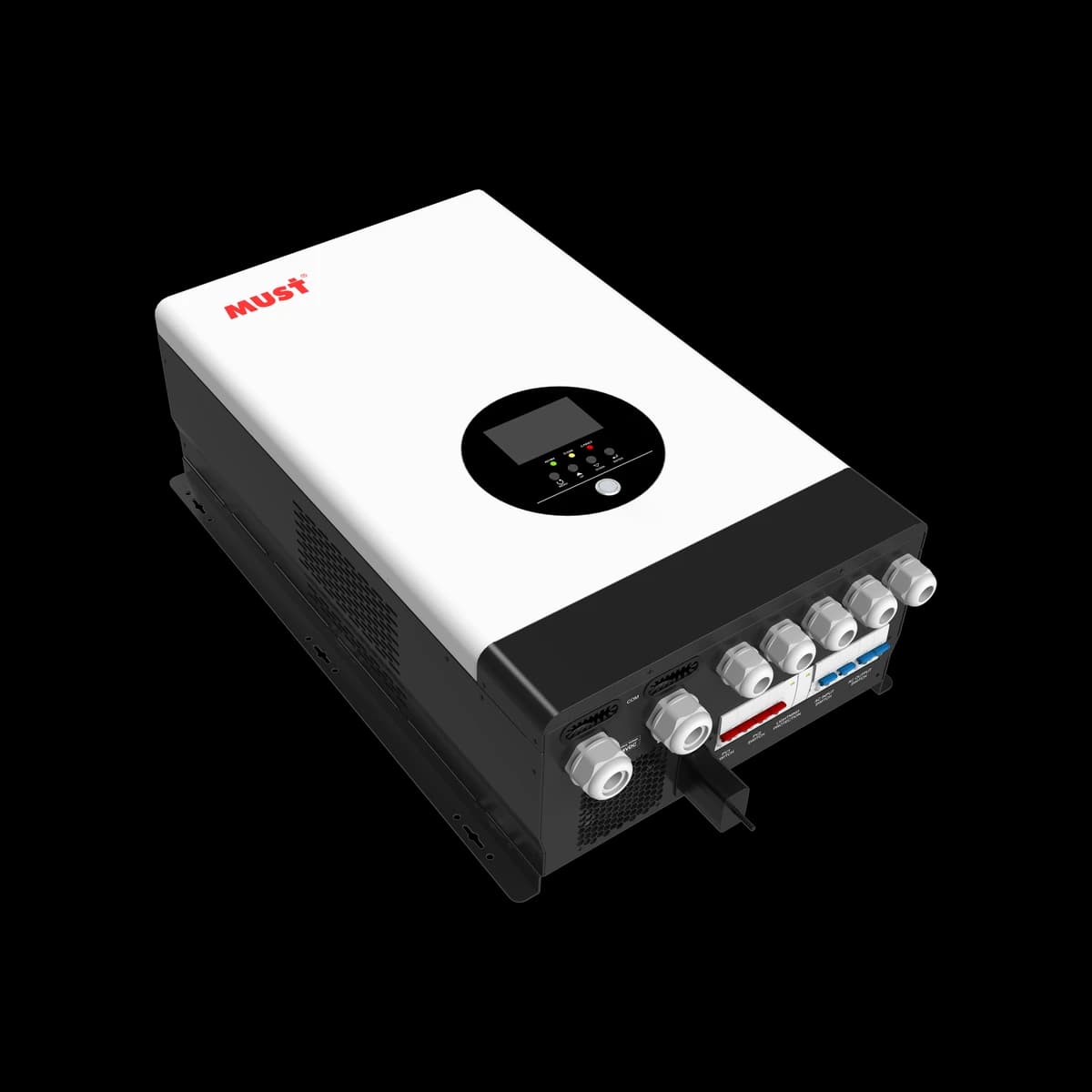

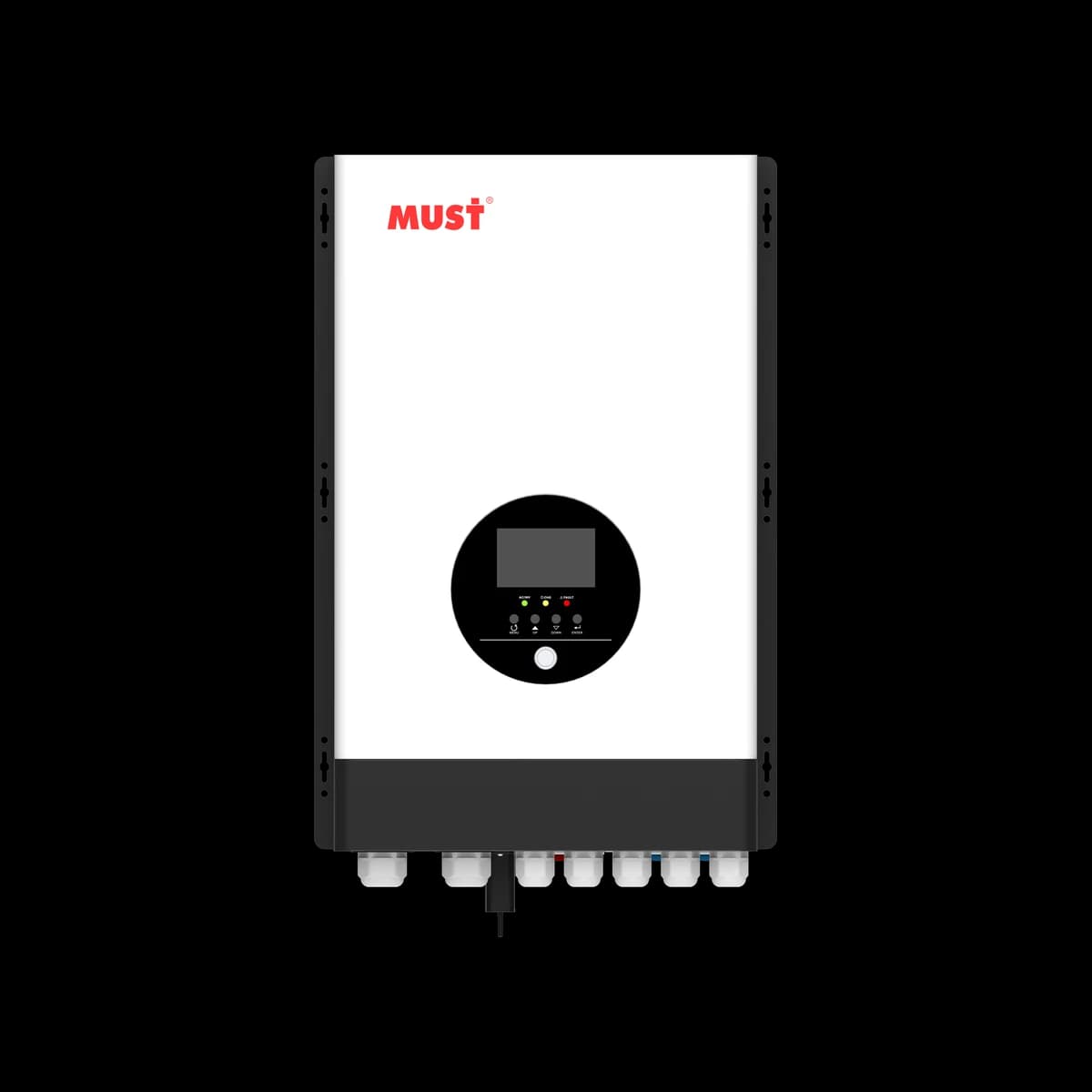

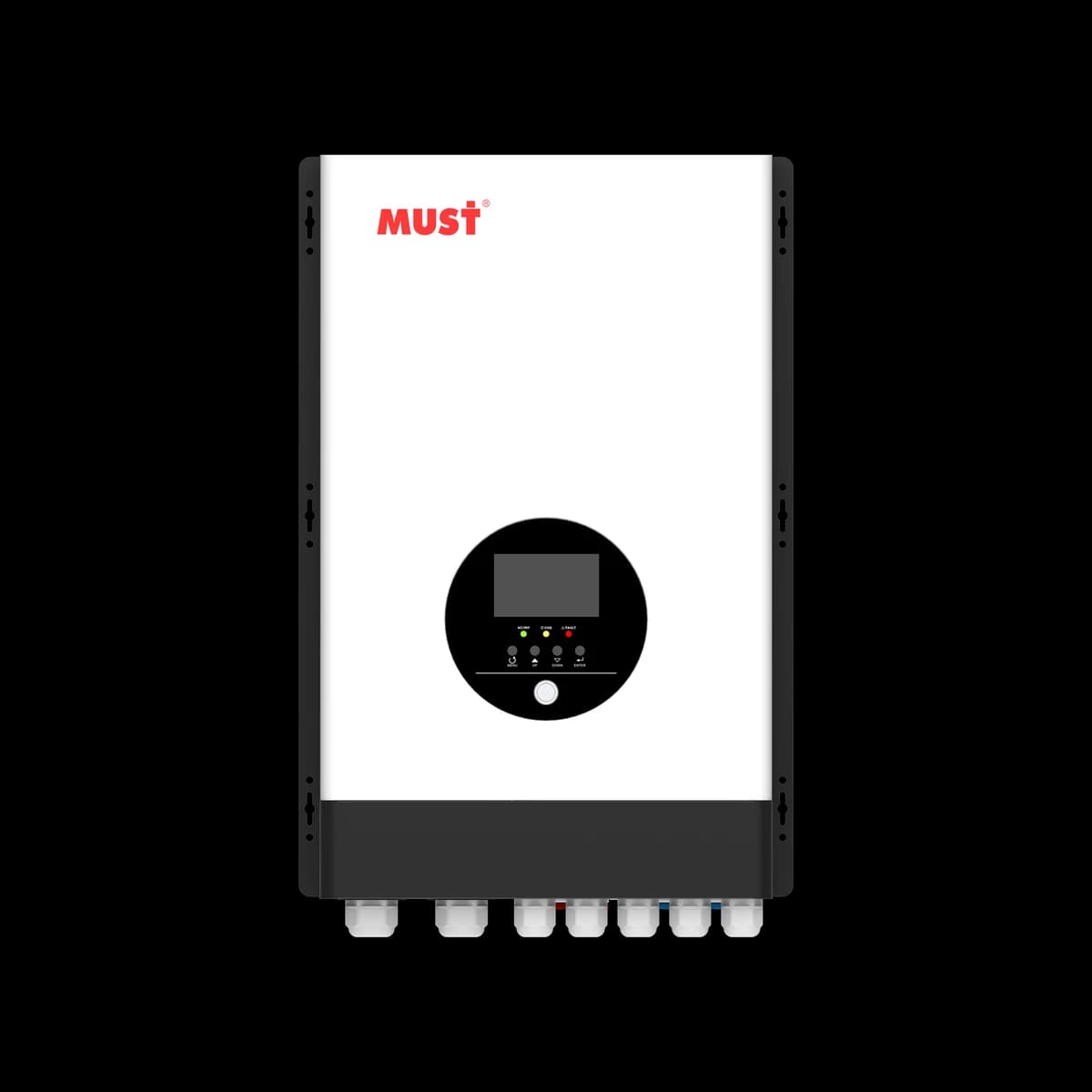

Inversor solar MUST PV3900 da linha 2026, com potência de 8–12 kW e saída CA de 220/230/240 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência8–12 kW
Saída CA220/230/240 V
Bateria48 V CC
ParalelismoAté 3 unidades
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | |||
|---|---|---|---|
| MODELO | PV39-8048 | PV39-10048 | PV39-12048 |
| Nominal Battery System Voltage | 48VDC | ||
| Stand-alone mode | Yes | ||
| Parallel operation | 3 units | ||
| SAÍDA DO INVERSOR | |||
| Rated power | 8KW | 10KW | 12KW |
| Surge rating | 24000VA | 30000VA | 36000VA |
| Capable of starting electric motor | 4HP | 5HP | 6HP |
| Waveform | Pure sine wave / same as input (bypass mode) | ||
| Nominal output voltage RMS | 220V/230V/240V | ||
| Inverter efficiency (peak) | >88% | ||
| Line mode efficiency | >95% | ||
| Power factor | 1.0 | ||
| Typical transfer time | 10ms(max) | ||
| ENTRADA CA | |||
| Voltage | 220V/230V/240V | ||
| Selectable voltage range | 90-280VAC (APL) | ||
| Frequency range | 50Hz / 60Hz | ||
| BATERIA | |||
| Low battery voltage cutoff | 40-48VDC for 48VDC mode | ||
| Low battery voltage recover | 42-50VDC for 48VDC mode | ||
| High battery voltage cutoff | 60VDC for 48VDC mode | ||
| High battery voltage recover | 57VDC for 48VDC mode | ||
| AC CHARGER | |||
| Output voltage | Depends on battery type (Supports lead-acid, gel, and lithium batteries) | ||
| Charger AC input breaker rating | 100A | ||
| Overcharge protection S.D. | 62.8VDC for 48VDC mode | ||
| Maximum charge current | 10~100A | 10~120A | 10~140A |
| BTS | |||
| Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||
| BYPASS E PROTEÇÕES | |||
| Nominal input frequency | 50Hz or 60Hz | ||
| Output short circuit protection | Software + Circuit breaker | ||
| Bypass breaker rating | 63A | ||
| Max bypass current | 80A | ||
| CARREGADOR SOLAR | |||
| Maximum PV charge current | 200A | ||
| DC voltage | 48V | ||
| Maximum PV array power | 10000W | 10000W | 10000W |
| MPPT range @ operating voltage(VDC) | 64~235VDC | ||
| Maximum PV array open circuit voltage | 250VDC | ||
| Maximum efficiency | >98% | ||
| Standby power consumption | <2W | ||
| OUTROS PARÂMETROS | |||
|---|---|---|---|
| MODELO | PV39-8048 | PV39-10048 | PV39-12048 |
| ESPECIFICAÇÕES MECÂNICAS | |||
| Mounting | Wall mount | ||
| Packing | Wooden box | ||
| Machine Dimension (W*H*D)(mm) | 439*660.5*223 | ||
| Package Dimension (W*H*D)(mm) | 782*304*520.5 | ||
| N.W(kg) | 59 | 68 | 75 |
| G.W(kg) | 76 | 85 | 92 |
| Warranty | 2years | ||
| OUTROS | |||
| Operating temperature range | 0°C to 50°C | ||
| Storage temperature | 15°C to 60°C | ||
| Audible noise | 60dB MAX | ||
| Communication | WiFi | ||
| Display | LED+LCD | ||
| CERTIFICAÇÕES E NORMAS | |||
| CE-LVD (IEC62109-1:2010, EN IEC62109-2:2011) | |||
O preço depende do modelo e da configuração.
