Série PH1100 US (6.5–12 kW)

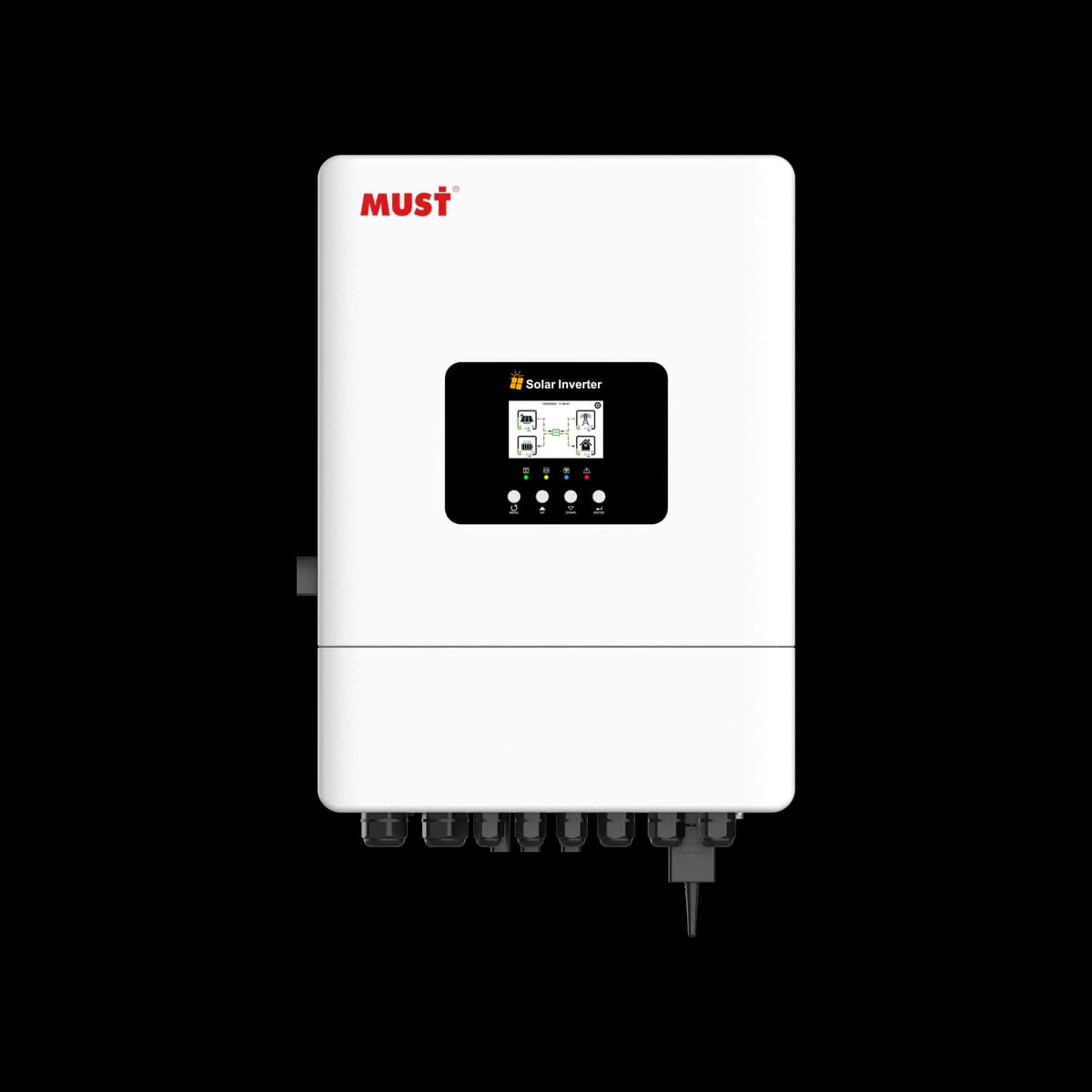

Inversor solar MUST Série PH1100 US (6.5–12 kW) da linha 2026, com potência de 6.5–12 kW, configuração trifásica e saída CA de 120/208 V ou 110/190 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência6.5–12 kW
FaseTrifásico
Saída CA120/208 V ou 110/190 V
Bateria48 V
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||||
|---|---|---|---|---|
| MODELO | PH11-6.5KL3-US | PH11-8KL3-US | PH11-10KL3-US | PH11-12KL3-US |
| Rated power | 6500W | 8000W | 10000W | 12000W |
| PARÂMETROS DOS TERMINAIS DA BATERIA | ||||
| Battery Type | Lead-acid battery/lithium battery | |||
| Battery Voltage | 48V | |||
| Battery Voltage Rang | 40-64V | |||
| Charging curve | Three-stage /equal charging | |||
| Lithium battery charging management system | Adaptive BMS System | |||
| Maximum charging/discharging power | 6500W | 8000W | 10000W | 12000W |
| Maximum charging/discharging current | 135A | 170A | 210A | 250A |
| PV INPUT DATA | ||||
| Maximum DC input power | 13000W | 16000W | 20000W | 24000W |
| Maximum input power of eachPV (PV1/PV2) | 9120W/5070W | 11250W/6240W | 14060W/7800W | 16780W/9360W |
| Rated PV input voltage | 380V | |||
| Maximum DC Voltage | 600V | |||
| Starting voltage | 125V | |||
| MPPT voltage range | 150V-540V | |||
| Full load MPPT voltage range | 233-540V | 286-540V | 358-540V | 429-540V |
| PV maximum input current | 36A+20A | |||
| PV maximum short circuit current | 54A+30A | |||
| MPPT quantity | 2 | |||
| Number of MPPT strings perchannel | 2+1 | |||
| GENERATOR INPUT | ||||
| Rated AC Input active power | 6500W | 8000W | 10000W | 12000W |
| Max.AC In apparent power | 7150VA | 8800VA | 11000VA | 13200VA |
| Rated AC Input current | 18A/19.7A | 22.2A/24.2A | 27.7A/30.3A | 33.3A/36.3A |
| AC INPUT/OUTPUT PARAMETERS | ||||
| Rated AC Input/Output active power | 6500W | 8000W | 10000W | 12000W |
| Rated AC Input/Output apparent power | 7150VA | 8800VA | 11000VA | 13200VA |
| Rated AC Input/Output Current | 18A/19.7A | 22.2A/24.2A | 27.7A/30.3A | 33.3A/36.3A |
| Maximum AC Input/Output current | 19.8A/21.6A | 24.4A/26.6A | 30.4A/33.3A | 36.6A/39.9A |
| Maximum output short-circuit current | 100A | |||
| Gird bypass current | 66.6A | |||
| Peak power(off-grid) | 2 times rated power,10 seconds | |||
| Power factor adjustment range | 0.8 lead - 0.8 lag | |||
| AC Input/Output frequency and voltage | 50/60Hz;3L/N/PE 120/208V 110/190V | |||
| Grid typed | Three phases | |||
| Current harmonic distortion rate (at rated power) | THD<3%(linear load) | |||
| Grid DC component | <0.5% In | |||
| EFFICIENCY | ||||
| Maximum efficiency | 97.5% | |||
| European Weighted Efficiency | 96.5% | |||
| MPPT efficiency | 99.5% | |||
| OUTROS PARÂMETROS | ||||
|---|---|---|---|---|
| MODELO | PH11-6.5KL3-US | PH11-8KL3-US | PH11-10KL3-US | PH11-12KL3-US |
| PROTECT | ||||
| Integrated | Islanding protection,PV input polarity reverse protection,insulation resistance detection,surge protection,leakage current monitoring protection,output current protection,output short circuit protection,output overvoltage protection, Overcurrent protection, Overheating protection | |||
| BASIC PARAMETERS | ||||
| Working temperature | -25~60°C, >45°C derating | |||
| Cooling method | Intelligent air cooling | |||
| Noise | <60dB | |||
| BMS Communication | RS485;CAN | |||
| Weight | 50kg | |||
| Dimensions | 446*656*285mm(excluding connectors and racks) | |||
| Protection Level | IP66 | |||
| Installation Method | Wall-mounted | |||
| Warranty | 5 years | |||
O preço depende do modelo e da configuração.
