Série PH1100 US (5–12 kW)

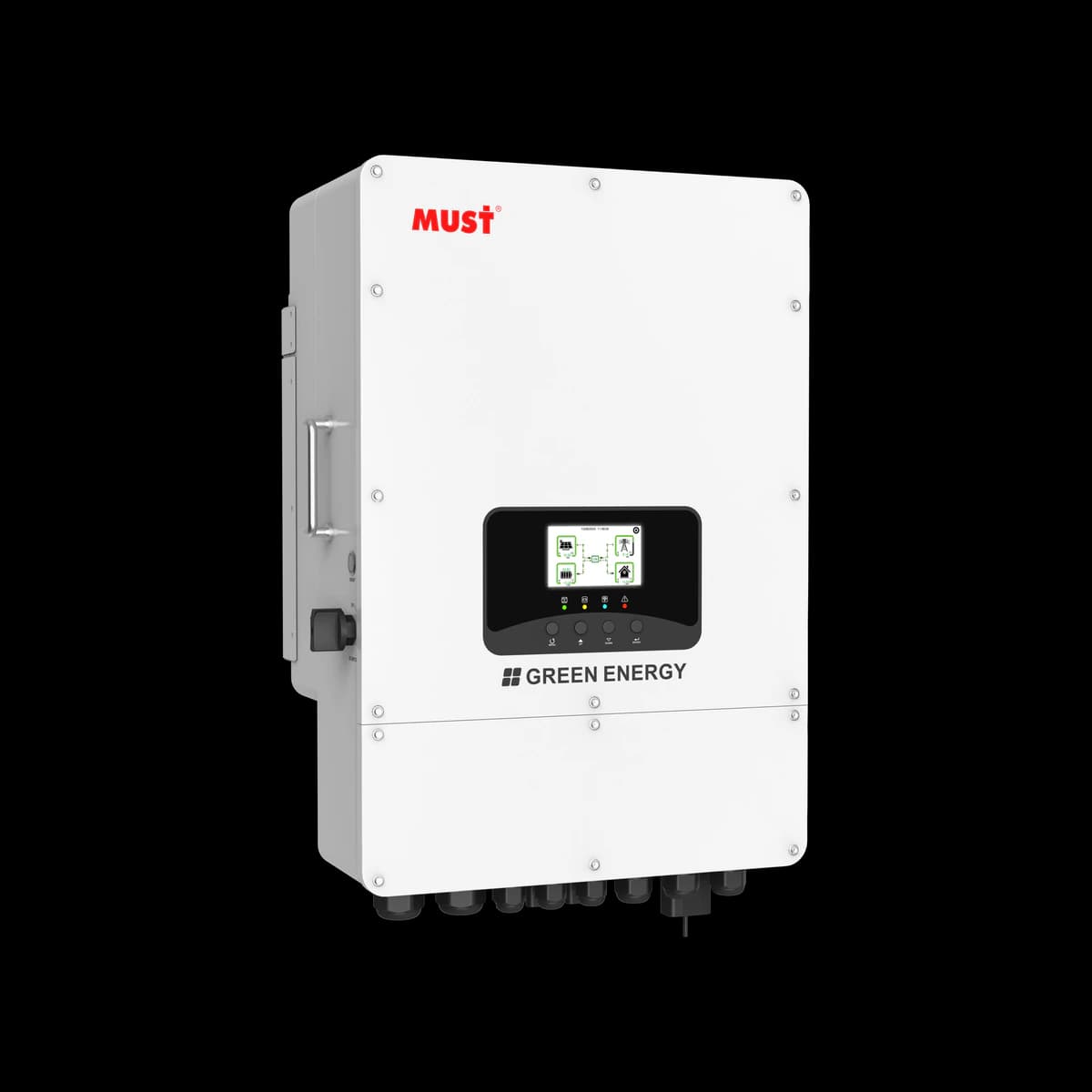

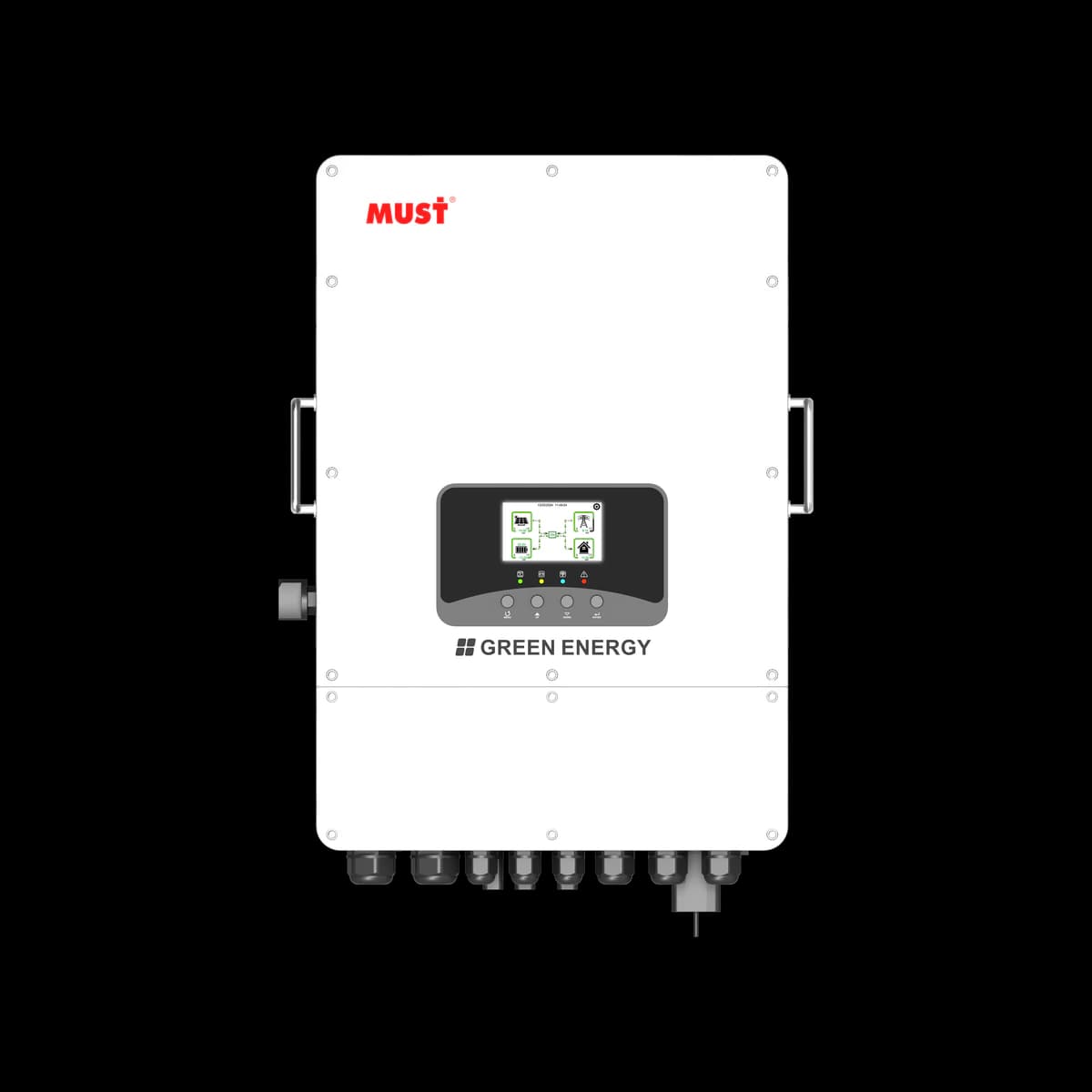

Inversor solar MUST Série PH1100 US (5–12 kW) da linha 2026, com potência de 5–12 kW, configuração em fase dividida e saída CA de 120/240 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência5–12 kW
FaseFase dividida
Saída CA120/240 V
Bateria48 V
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | |||||
|---|---|---|---|---|---|
| MODELO | PH11-5KL2-US | PH11-6KL2-US | PH11-8KL2-US | PH11-10KL2-US | PH11-12KL2-US |
| Rated power | 5000W | 6000W | 8000W | 10000W | 12000W |
| DADOS DE ENTRADA DA BATERIA | |||||
| Battery type | Lead-acid battery / Lithium battery | ||||
| Battery voltage | 48V | ||||
| Battery voltage range | 40~60V | ||||
| Charging curve | 4-stage adaptive with maintenance/Equalization | ||||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | ||||
| Maximum charging/discharging power | 5000W | 6000W | 8000W | 10000W | 12000W |
| Maximum charging/discharging current | 120A | 150A | 190A | 220A | 240A |
| DADOS DA ENTRADA FV | |||||
| Max. DC Input Power | 10000W | 12000W | 16000W | 20000W | 24000W |
| Maximum DC voltage | 600V | ||||
| Start-up Voltage | 125V | ||||
| Full Load DC Voltage Range | 250-540V | 300-540V | 285-540V | 357-540V | 428-540V |
| Rated PV Input Voltage | 370V | ||||
| Minimum voltage for grid connection | 150V | ||||
| Enter high voltage error recovery point | 600V | ||||
| Maximum input current | 20A/20A | 36A/20A | |||
| No.of MPP Trackers | 2 | ||||
| Input terminal type | H4/MC4 | ||||
| AC INPUT/OUTPUT DATA | |||||
| Rated AC Input/Output Active Power | 5000W | 6000W | 8000W | 10000W | 12000W |
| Max. AC Input/Output Apparent Power | 5500VA | 6600VA | 8800VA | 11000VA | 13200VA |
| Rated AC Input/Output Current | 20.8A | 25A | 33.3A | 41.6A | 50A |
| Max. AC Input/Output Current | 22.9A | 27.5A | 36.6A | 45.8A | 55A |
| Max. AC Input Power (grid to load) | 10000W | 12000W | 16000W | 20000W | 20000W |
| Rated Input/Output Voltage/Range | 120V/240V:208V | ||||
| Rated Input/Output Grid Frequency/Range | 60Hz±5Hz/ 50Hz±5Hz | ||||
| Rated output power factor | 1 | ||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
| Total Harmonics Current Distortion (THDi) | <3% | ||||
| Grid Type | Split Phase | ||||
| DC Current Injection | <0.5% | ||||
| EFFICIENCY | |||||
| Max. Efficiency | 97.5% | ||||
| Euro Efficiency | 96.5% | ||||
| MPPT Efficiency | 99.5% | ||||
| PROTECTION | |||||
| Integrated | Islanding protection, Output overcurrent protection, Output overvoltage protection, DC switch rating for each MPPT, Grid monitoring, Output over current protection, Gird overvoltage protection-varistor, Integrated all-pole sensitive leakage current, ISO monitoring, over temperature protection. Battery over-current protection, Battery over-temperature protection | ||||
| Surge Protection | AC Type III | ||||
| Overvoltage Category | AC Type III | ||||
| OUTROS PARÂMETROS | |||||
|---|---|---|---|---|---|
| MODELO | PH11-5KL2-US | PH11-6KL2-US | PH11-8KL2-US | PH11-10KL2-US | PH11-12KL2-US |
| GENERAL DATA | |||||
| Operating Temperature Range (°C) | -25°C~+60°C, >45°C Derating | ||||
| Cooling | Fan cooling | ||||
| Noise (dB) | ≤50dB | ||||
| Altitude | 3000m, >3000mDerating | ||||
| Topology | Battery-side transformer isolation, PV-side non-transformer isolation | ||||
| Communication | USB/ WiFi/ Enternet(optional) | ||||
| Display | 4.3-inch touch screen | ||||
| Protection Degree | IP66 | ||||
| ESPECIFICAÇÕES MECÂNICAS | |||||
| Machine Dimension (W*H*D)(mm) | 446*687*285 (excluding connectors and racks) | ||||
| Package Dimension (W*H*D)(mm) | 567*404*816 | ||||
| N.W(kg) | 38 (Excluding Connectors and Brackets) | ||||
| G.W(kg) | 42 | ||||
| Warranty | 5 Year | ||||
| CERTIFICAÇÕES E NORMAS | |||||
| NBT32004-2013 | |||||
O preço depende do modelo e da configuração.
