Inversores de 110 VMUST
PH1100 LV

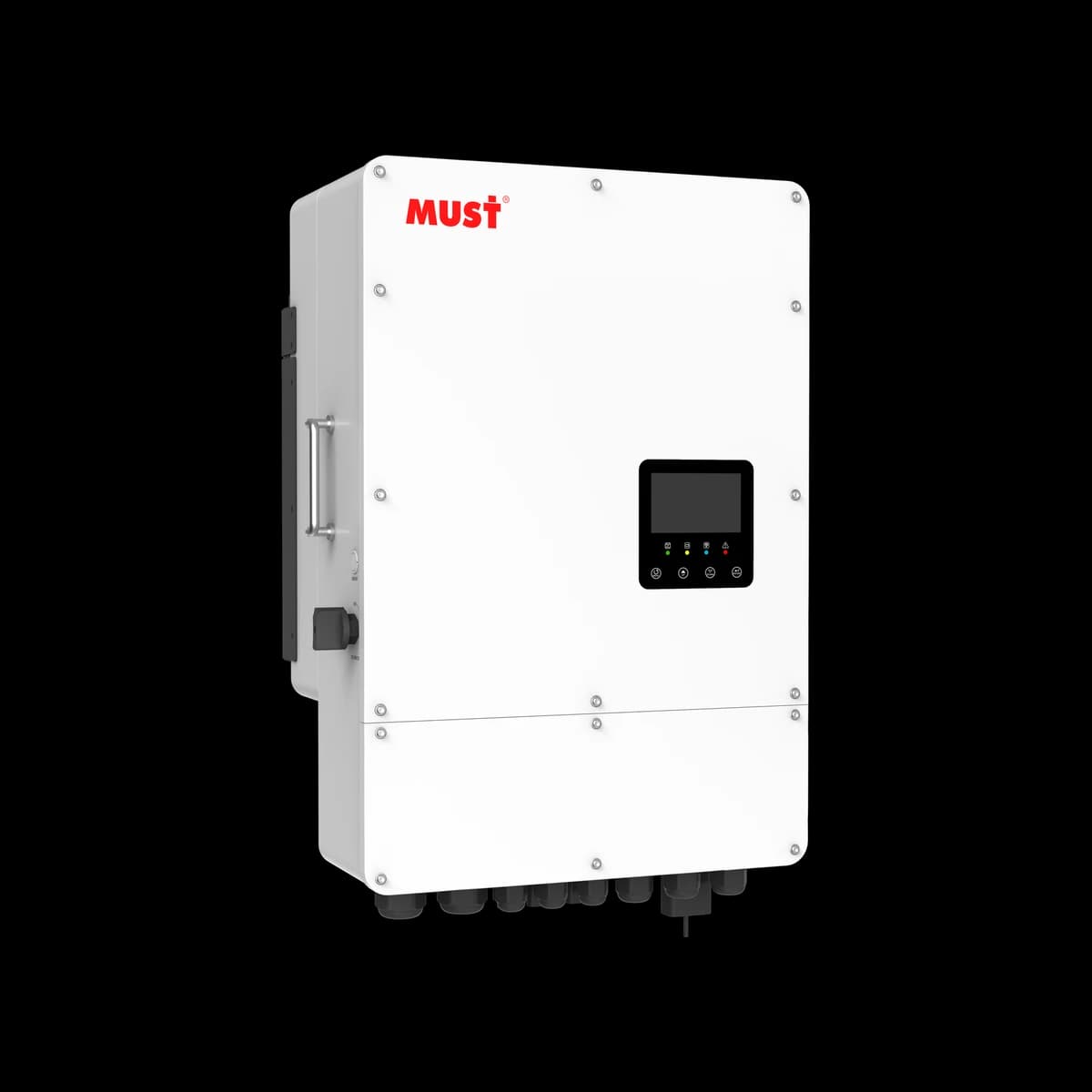

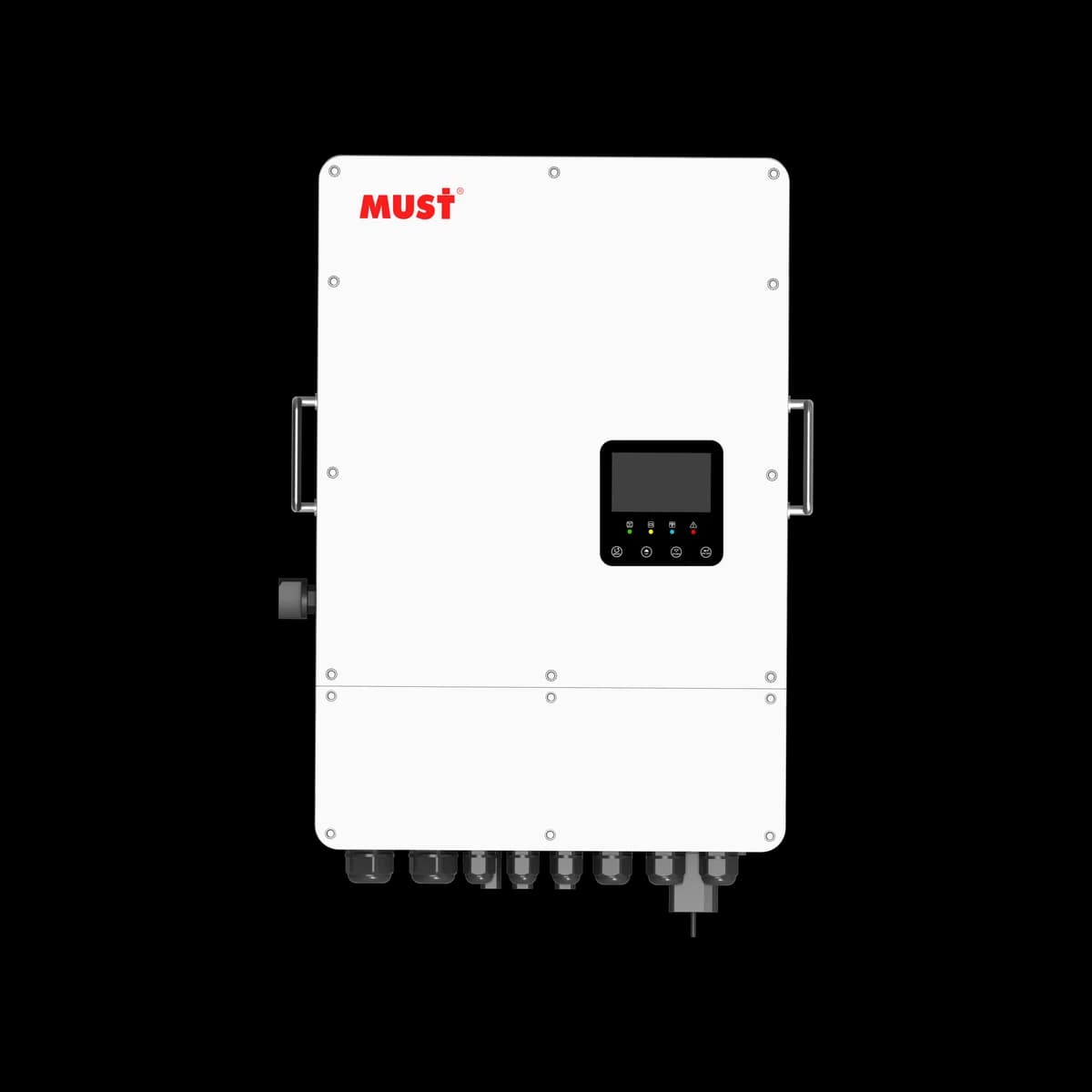

Inversor solar MUST PH1100 LV da linha 2026, com potência de 3,6–4 kW e configuração monofásica. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Potência3,6–4 kW
FaseMonofásico
Bateria48 V
ProteçãoIP66
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | ||
|---|---|---|
| MODELO | PH11-3648LV | PH11-4048LV |
| DADOS DE ENTRADA DA BATERIA | ||
| Battery type | Lead-acid battery / Lithium battery | |
| Battery voltage | 48Vd.c | |
| Charging curve | 4-stage adaptive with maintenance/Equalization | |
| Maximum charging/discharging power | 3600W | 4000W |
| Maximum charging/discharging current | 90Ad.c | 100Ad.c |
| DADOS DA ENTRADA FV | ||
| Max. DC Input Power | 7200W | 8000W |
| Maximum DC voltage | 500d.c | |
| Start-up Voltage | 100Vd.c | |
| MPPT Voltage Range | 130-440Vd.c | |
| Minimum voltage for grid connection | 130Vd.c | |
| Maximum input current | 18A+18A | 26A+26A |
| No.of MPP Trackers | 2 | 2 |
| Input terminal type | H4/MC4 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power | 3600W | 4000W |
| Max. AC Input/Output Apparent Power | 3960VA | 4400VA |
| Rated Input/Output Voltage/Range | 120Va.c/130Va.c | |
| Rated Input/Output Grid Frequency/Range | 60Hz±5Hz/ 50Hz±5Hz | |
| Rated output power factor | 1 | |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
| Total Harmonics Current Distortion (THDi) | <3% | |
| Grid Type | Single phase | |
| DC Current Injection | 0.5% | |
| EFFICIENCY | ||
| Max. Efficiency | 97.5% | |
| Euro Efficiency | 96.5% | |
| MPPT Efficiency | >99% | |
| PROTECTION | ||
| Integrated | Islanding protection, Output overcurrent protection, Output overvoltage protection, DC switch rating for each MPPT, Grid monitoring, Output over current protection, Gird overvoltage protection-varistor, Integrated all-pole sensitive leakage current, ISO monitoring, over temperature protection. | |
| Surge Protection | AC Type III | |
| Overvoltage Category | AC Type III | |
| OUTROS PARÂMETROS | ||
|---|---|---|
| MODELO | PH11-3648LV | PH11-4048LV |
| GENERAL DATA | ||
| Operating Temperature Range | -25°C~+60°C, >45°C Derating | |
| Cooling | Intelligent Fan | |
| Noise | ≤50dB | |
| Altitude | 3000m, >3000mDerating | |
| Topology | Battery-side transformer isolation, PV-side non-transformer isolation | |
| Communication | USB/ WiFi/ Enternet(optional) | |
| Display | 4.3-inch touch screen | |
| Protection Degree | IP66 | |
| ESPECIFICAÇÕES MECÂNICAS | ||
| Machine Dimension (W*H*D)(mm) | 372*564*241 | |
| Package Dimension (W*H*D)(mm) | 479*652*363 | |
| N.W(kg) | 25 | |
| G.W(kg) | 33 | |
| Warranty | 5 year | |
| CERTIFICAÇÕES E NORMAS | ||
| NBT32004-2013/EN50549 | ||
O preço depende do modelo e da configuração.
