MUST EnergySolução durável
Baterias LiFePO4MUST

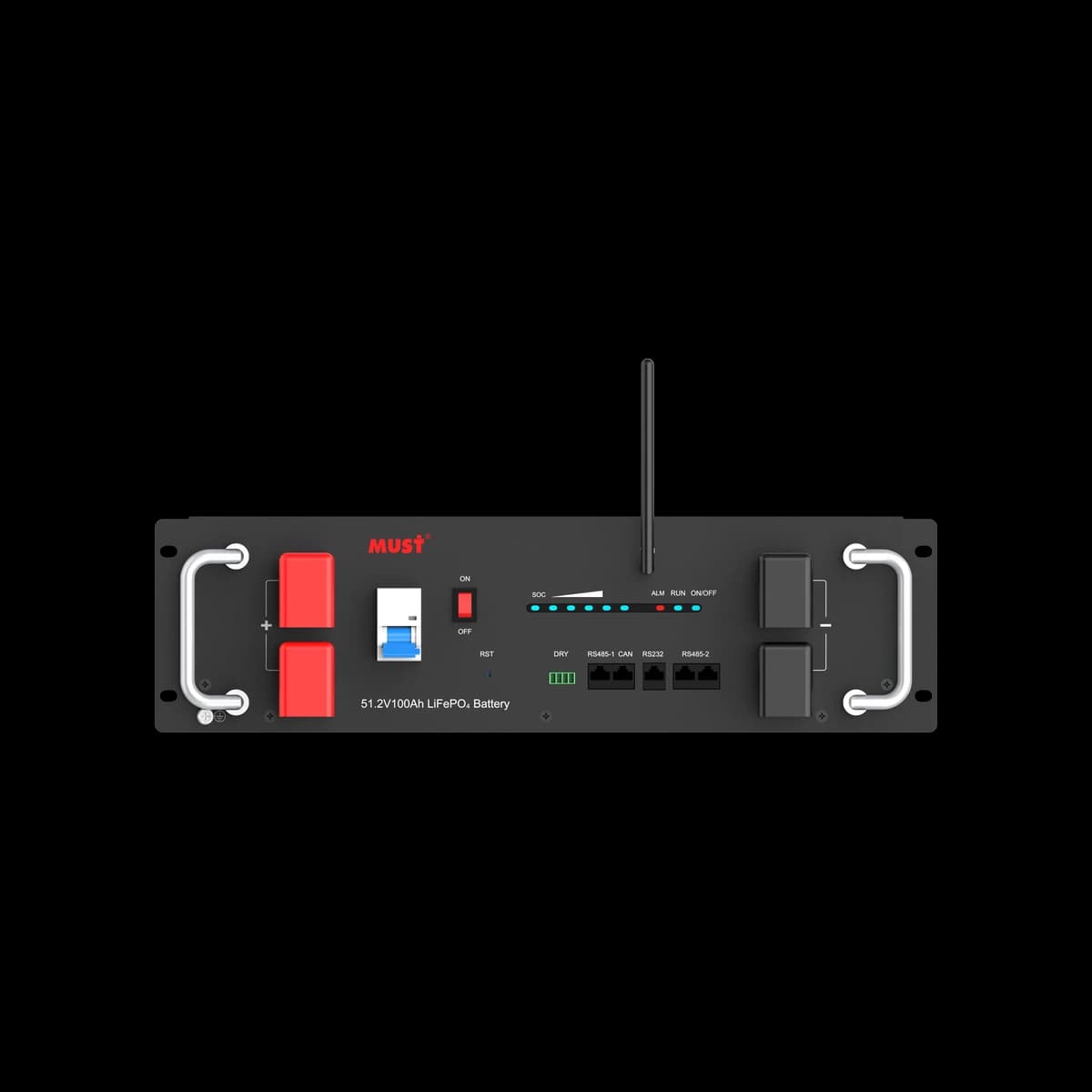

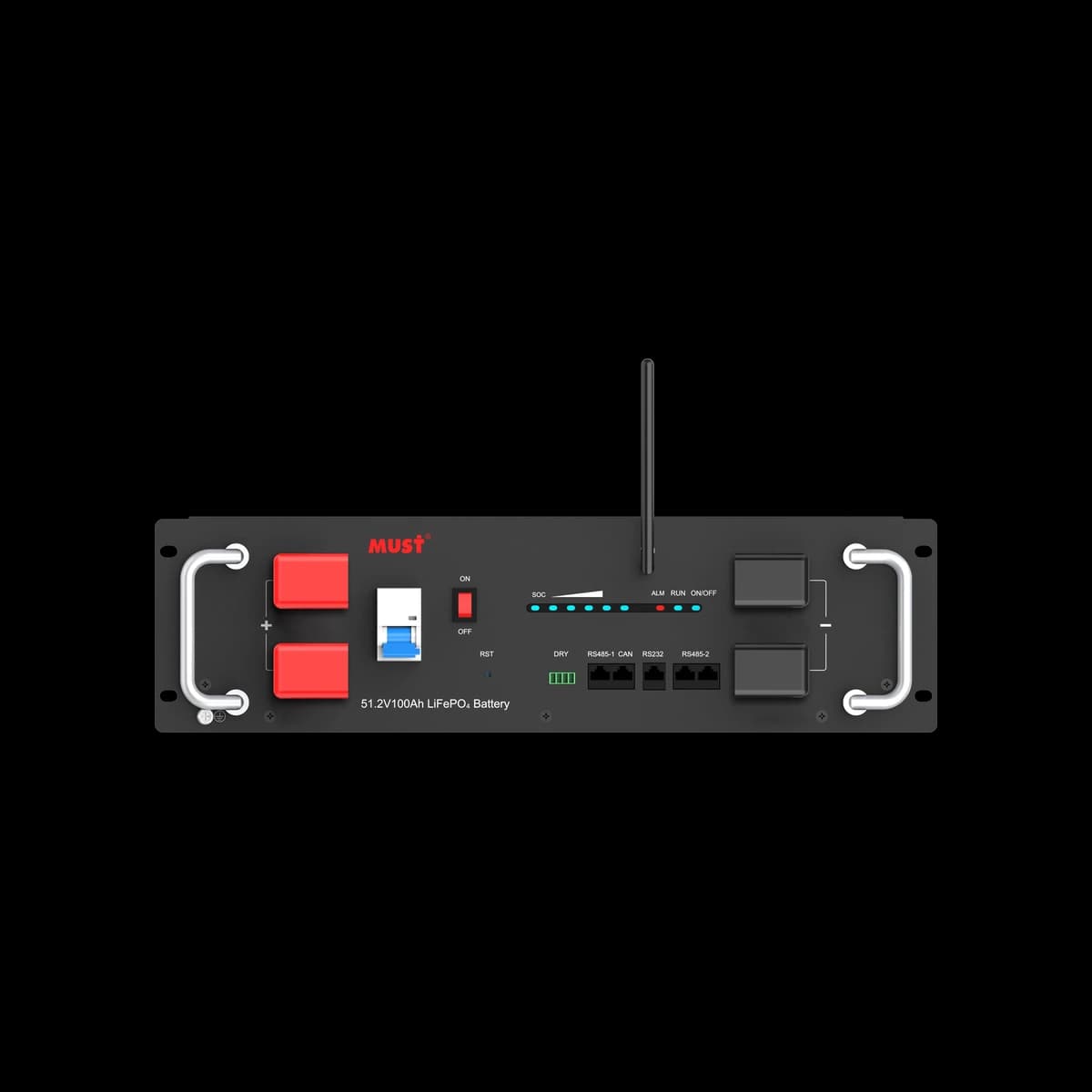

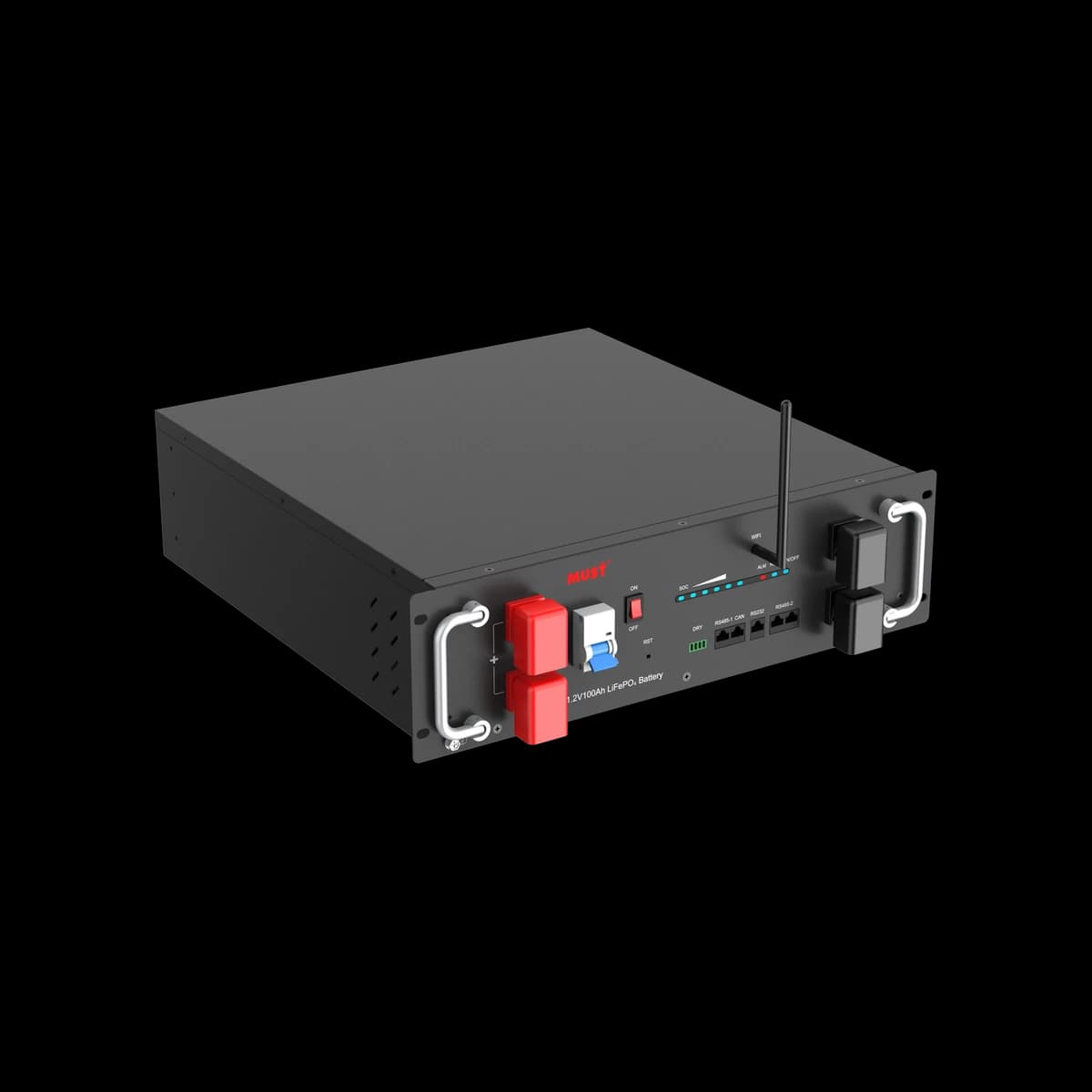

LP2900
Bateria LiFePO₄ MUST LP2900 da linha 2026, com energia de 5,12–10,24 kWh e tensão nominal de 51,2 V. Consulte a ficha completa para comparar modelos, proteções, comunicação, dados elétricos e dimensões.
Energia5,12–10,24 kWh
Tensão nominal51,2 V
Capacidade100/200 Ah
ComunicaçãoWi-Fi
Principais parâmetros da série
| PARÂMETROS PRINCIPAIS | |||
|---|---|---|---|
| MODELO | LP29-48100 PRO | LP29-48200 PRO | |
| Nominal Voltage | 51.2V | ||
| Nominal Capacity | 100Ah | 200Ah | |
| Nominal Energy | 5120Wh | 10240Wh | |
| AC Internal Impedance | ≤30.0mΩ | ||
| Standard Charging | Constant current | 50.0A | 100.0A |
| Constant voltage | 56.8V | 56.8V | |
| End current (Cut off) | 5A | 10A | |
| Standard Discharging | Constant current | 50A | 150A |
| Cut off voltage | 43.2V | 43.2V | |
| Charging Voltage Range | 56.8~57.6V | 56.8~57.6V | |
| Max. Continuous Charging Current | 100.0A | 150.0A | |
| Max. Output Power | 5KW | 7.5KW | |
| Cycles life | ≥8000(25°C+2°C) | ||
| Parallel connection | Up to 15 units | ||
| Communication Port | RS485, CAN, WIFI(optional) | ||
| Power cable connectors | 120A | ||
| Operation Temperature | Charging temperature | 0~50°C | |
| Discharging temperature | -20~55°C | ||
| Relative Humidity | 5%~95% (No Condensation) | ||
| Storage Temperature | -5°C~35°C | ||
| OUTROS PARÂMETROS | ||
|---|---|---|
| MODELO | LP29-48100 PRO | LP29-48200 PRO |
| Installation Mode | Rack (19”) installation | Rack (19”) installation |
| Machine Dimension (W*H*D (mm) | 440*133*470 | 440*222*600 |
| Package Dimension (W*H*D) (mm) | 573*557*208 | 702*557*307 |
| N.W (kg) | ≈44.5 | ≈83 |
| G.W (kg) | ≈48 | ≈87 |
| * Variations in dimensions and weights may occur due to production batches. | ||
| Altitude | ≤4000m | |
| Warranty | 10 years | |
| Certification & Standards | CE-EMC(EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019); IEC62619:2017; IEC62619:2022; UN38.3/ MSDS | |
O preço depende do modelo e da configuração.
